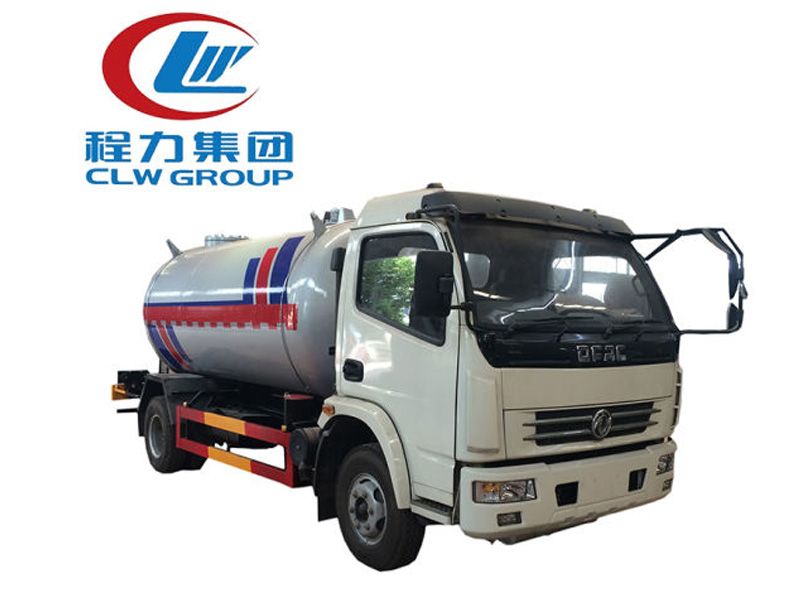

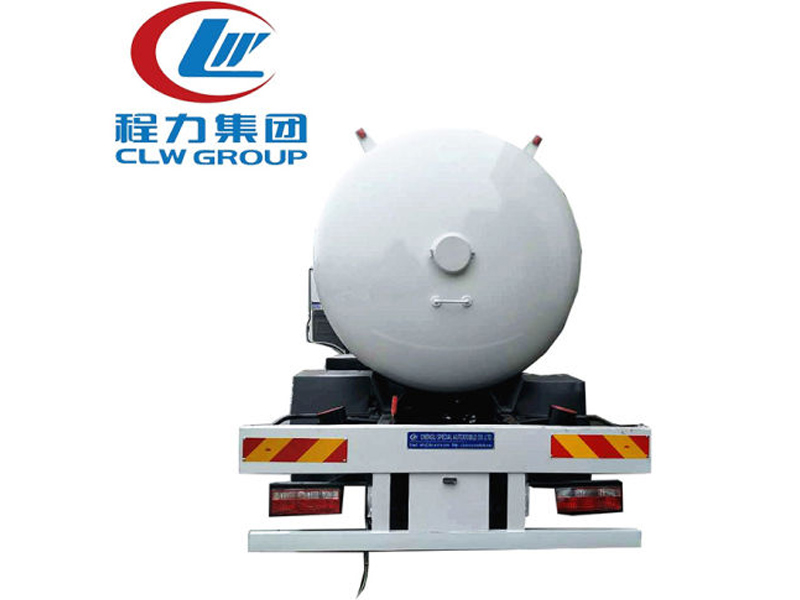

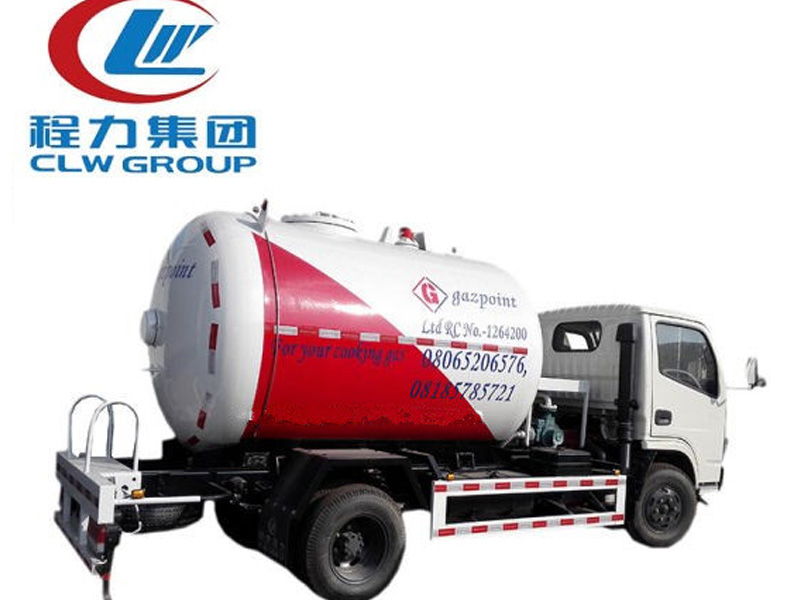

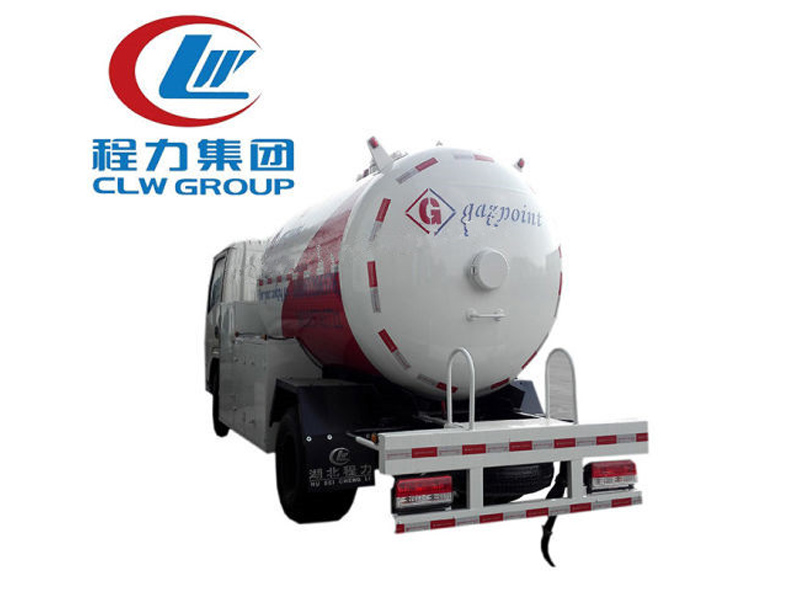

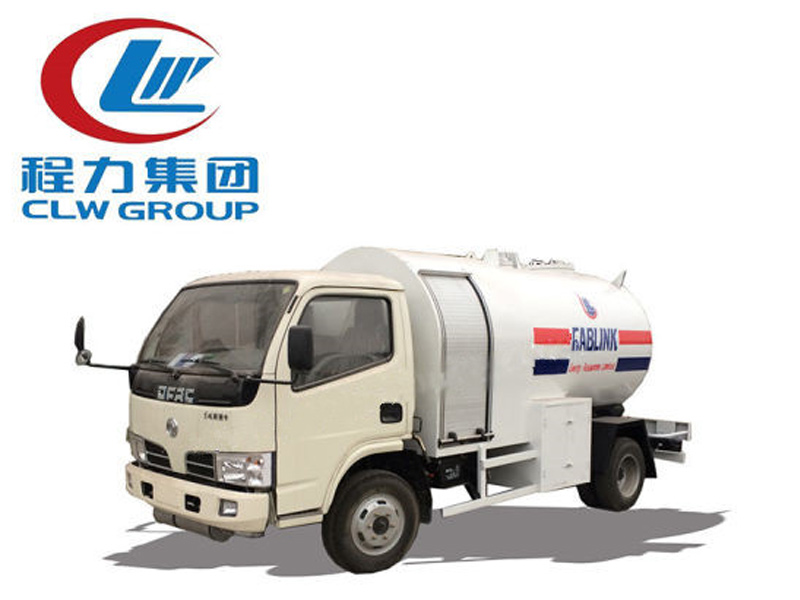

4X2 Dongfeng 5000 Liters LPG Transport Trucks

4X2 Dongfeng 5000 Liters LPG Transport Trucks
  • 4X2 Dongfeng 5000 Liters LPG Transport Trucks
  • 4X2 Dongfeng 5000 Liters LPG Transport Trucks
  • 4X2 Dongfeng 5000 Liters LPG Transport Trucks
  • 4X2 Dongfeng 5000 Liters LPG Transport Trucks
  • 4X2 Dongfeng 5000 Liters LPG Transport Trucks
  • 4X2 Dongfeng 5000 Liters LPG Transport Trucks
DongFeng LPG tanker (liquefied gas tanker) also known as LPG transport vehicles, LGP transporting tanker. It is used to transport propane, propylene, dimethyl ether, liquid ammonia, methyl amine, acetaldehyde and other liquefied gases of the special automobile.

It can be divided into: propane transport truck, propylene transport truck, liquid ammonia delivery truck, methylamine transport truck, acetaldehyde transport tank.

The station liquefied petroleum gas transport vehicle is equipped with a manhole, level gauge, discharge nozzle, thermometer, level gauge, pressure gauge, safety valve, emergency shut-off valve and other wholesale safety auxiliary equipment.

The advantage of 4X2 Dongfeng 5000 Liters LPG Transport Truck


1.  DongFeng chassis, Strong performance.
2.  China famous engine, Super powerful.
3.  maintenance-free within 100,000 km.
4.  anticorrosion coating.
6.  nice shape, great structure.
7.  Long service life.

The specification 4x2 DongFeng 5m3 LPG Transpot  truck


Description

DongFeng LPG Transpot truck

Drive Model

4x2

Vehicle Main Dimensions

Dimensions(L x W x H)mm

7200*2330*2600

Wheel base (mm)

3300

Overhang (front/rear) (mm)

1115/1485

Approach/Departure angle(°)

18/12

Weight in KGS

Tare Weight

4900

Payload

2850

Front axles loading capacity

1x1500

Rear axles loading capacity

1x3000

Max. driving speed(km/h)

80

Engine

Model

CY4102-E3C

Type

Vertical in line, water-cooling                4-stroke,direct injection

Horse Power(HP)

110HP

Emission standard

Euro III

Gearbox

5 forwards & 1 reverse

Tire

12.00R20 Radial tire , 11 pieces including one spare tire

Brakes

dual circuit compressed air brake

LPG tanker


1,Size: 3659*1620 mm, tanker body: 5.5CBM; Thickness of body:9.37mm , Q345R steel
2, fitted with refilling machine, filling quantity(Ton/CBM):0.42Ton/CBM;  Design pressure:1.77Mpa
3, other safety facility and key parts: Liquid level;safety vlave;tempreture meter;pressure meter;emergency shut-off valve;
