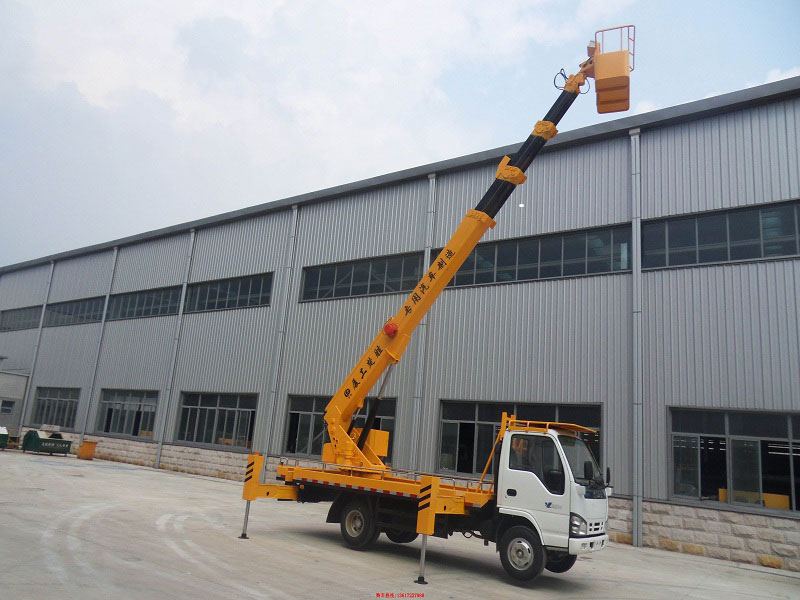

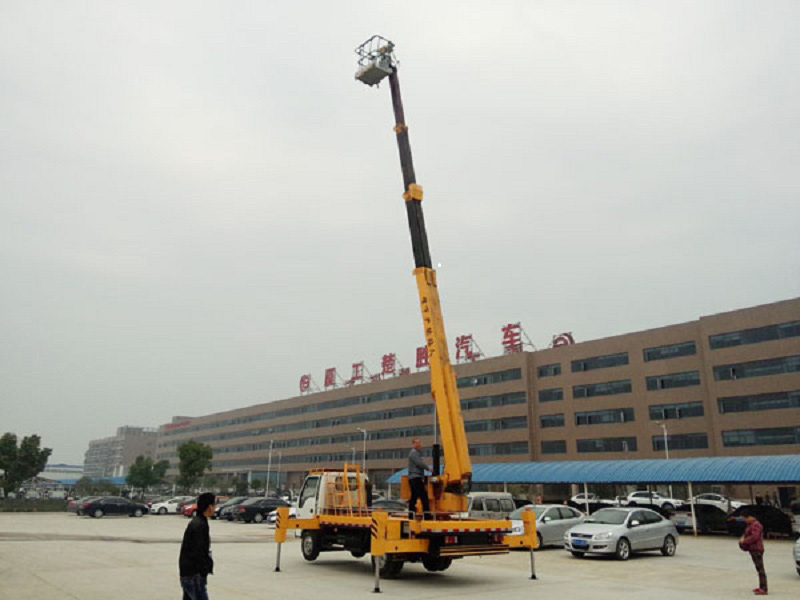

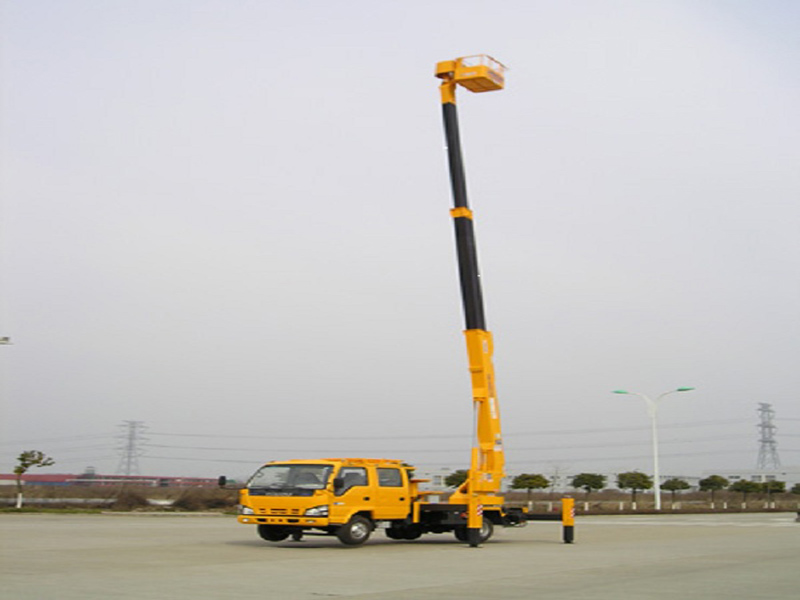

ISUZU 14M Boom Lift Trucks

ISUZU 14M Boom Lift Trucks
  • ISUZU 14M Boom Lift Trucks
  • ISUZU 14M Boom Lift Trucks
  • ISUZU 14M Boom Lift Trucks
  • ISUZU 14M Boom Lift Trucks
  • ISUZU 14M Boom Lift Trucks
  • ISUZU 14M Boom Lift Trucks
Boom Lift truck using the full telescopic working arm, the leg span is large, the stability is good, it can be operated at the same time or alone, it is safe and reliable, the structure is compact, the operation is convenient, the speed is fast, and the working efficiency is high. With flexibility, it can also work flexibly in tall buildings. Configure the cable remote control, the hanging basket is equipped with the operating table. It is widely used in the installation and maintenance of industries such as municipal, electric power, street lamps, advertising, communication, photography, garden, shipbuilding, transportation, wharf, airport port, emergency rescue, large industrial and mining industry and so on.

The advantage of ISUZU 14M Boom Lift Truck


1. The vehicle has a compact structure, short dimensions, convenient driving and flexible steering.
2. The vehicle is fully electrically controlled, with multiple safety protection functions.
3. Each landing legs has a soft leg and ground protection function
4. Large screen display in both body and basket
5. It can be remotely operated in a basket
6. Landing legs with front cross legs, large leg spans, better vehicle stability
7. Large-angle  backward-rotating turntable makes the boom longer and the entire vehicle shorter and more compact
8. Hexagonal arm cross-section, better structural strength, make the expansion and contraction more stable
9. Safer structure and higher efficiency

The specification of ISUZU 14M Boom Lift Truck


Name

ISUZU 14M Boom Lift Truck

Item

Specifications

Item

Specifications

Gross Weight (kg)

6970

Overall dimensions  (mm)

7730×2020×3370

Curb Weight (kg)

6645

Wheelbase (mm)

3308

Approach / Departure Angle(°)

20/15

Front Track (mm)

1503, 1485, 1519

Rear Track (mm)

1494, 1516

Front/Rear Overhang (mm)

1040/2082

Axle Load (kg)

2780/4190

Number of axles

2

Number of Tires

6

Traction system

4×2

Max speed (km/h)

99

ABS

Contain

Tire Specification

7.00-16,7.00R16

Paint

yellow

Allowable Cab Passengers

2+3

Leaf Spring

6/6+5



Chassis

Brand

ISUZU

Emission Level

Euro 5

Engine (Diesel)

Superstructure

Max Operation Height: 16m , 360° hydraulic Rotation, 3section folding arm, Single hydraulic lifting cylinder, bidirectional balance valve, Electronically Control System lift arm, 1000kg telescoping hook, 4pcs of hydro cylinder adjustable manual landing leg with both way hydraulic lock.
