50000 Liter Gas Filling Station For Cylinder

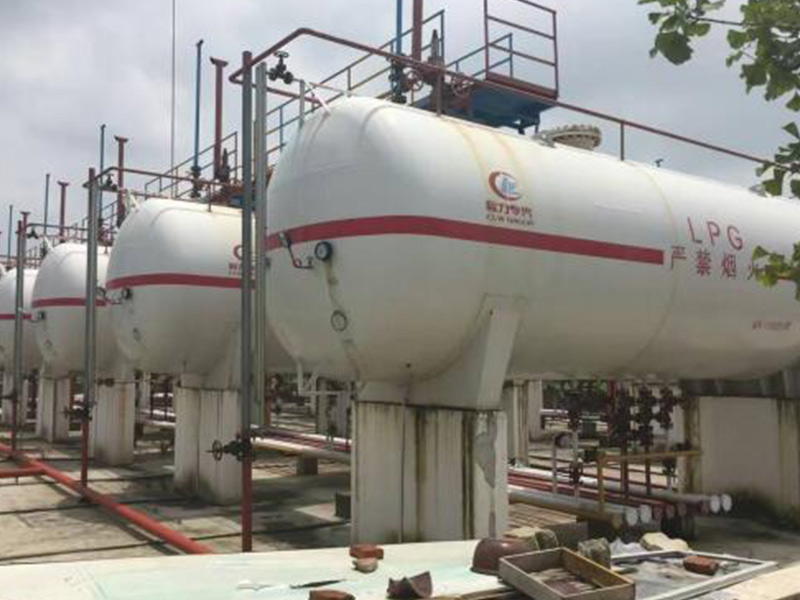

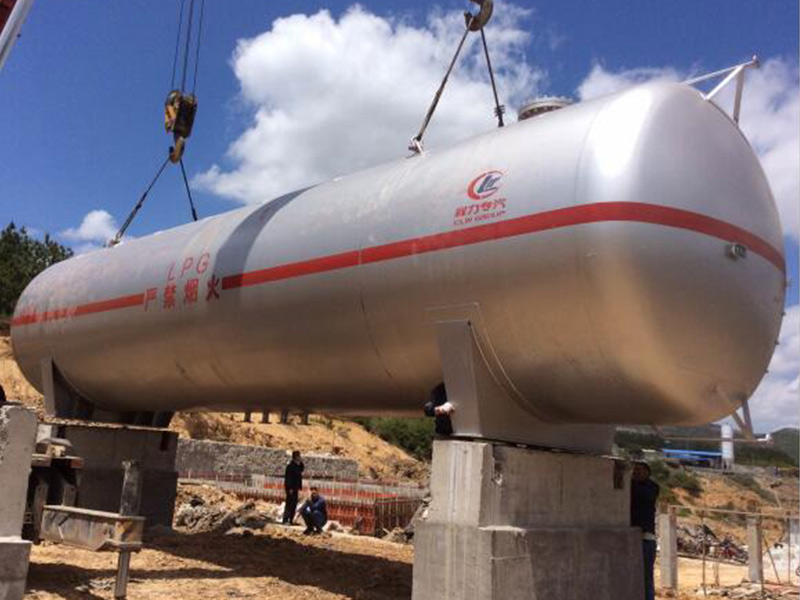

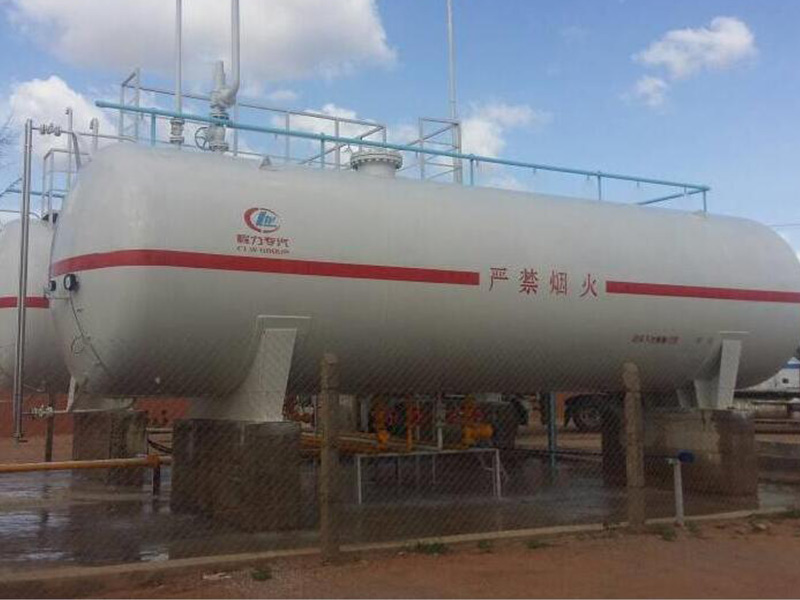

LPG filling plant is a specialized equipment for storage of liquefied petroleum gas (LPG), it is for filling gas cylinders and LPG vehicles. It can be designed and installed on the basis of terrain, site area, construction cost, operation convenience and so on. Our LPG storage tank strictly adopts scientific advanced construction technology to ensure the lowest shrinkage rate and the highest dimensional stability at low temperature, so that the evaporation rate is the lowest and the operation is safe and reliable.

The quality of the material, appearance and weld quality, operation quality, installation quality, internal device and safety accessories of the product is strictly evaluated. It is suitable for the storage of LPG, liquid ammonia, carbon disulfide, ethylene oxide, gasoline, butane, propane, propylene and other oil, fuel and chemical raw materials. Pump is equivalent to the entire device of the brain. It is a equipment mainly used in storage and filling liquefied gas between tanks and cylinders or gas vehicle. We can offer you different brand of filling pump for your LPG filling plant, such as Chinese brand pump, American Corken and Blackmer pump. The fire sprinkler system in the liquefied gas station is the safety guarantee of the tank area of the liquefied gas storage tank. When the temperature of the tank is too high, it will trigger the automatic fire pump to spray water and danger in time. In order to ensure the safe operation of LPG storage tanks, it is very important to establish a complete automatic fire control system at LPG storage and distribution station.

Advantage
Specifications

The advantage of 50CBM LPG Filling Plant

1.Easy and safe to operate.
2.100% X-ray test.
3.Storage tank with 2 times corrosion resistance painting.
4.Hydraulic water pressure test: 2.22Mpa

We can offer whole set accessories and equipments of building a completed LPG plant as follows,

LPG TANK CAPACTITY FROM 5CBM~200CBM

LPG PUMP AND MOTOR
LPG COMPRESSOR
AIR COMPRESSOR
VOLUME/MASS FLOW METER
LPG DISPENSER MACHINE/CYLINDER WEIGHT SCALE
GAS LEAKAGE DETECTOR
LEVEL GAUGE(MAGNETIC PLATE TYPE,ROCHESTER,FLOAT BALL..)
ALL KINDS OF VALVES(globe valves,safety valves,ball valves,non-return valves,strainer,emergency cut-off valves...)
PIPELINES
GASKETS
BOLTS AND NUTS

The specification of 50CBM LPG Filling Plant

50CBM LPG TANKERDIMENSIONS
Volume of Tank (cbm)	50
Tare Weight (kg)	10190 kg
Filling Capacity (kg)	19950 kg
Thickness of Shell (mm)	12
Thickness of Endplate (mm)	14
Tank cylinder diameter (mm)	2300
External Dimensions (mm) (length×width×height)	1250823242914
Material of Tank and Main Pressure Parts	Carbon Steel Q345R
Filling Medium	Liquefied Petroleum Gas(propane)
Design Pressure	1.77MPa
Test Pressure	2.22MPa
Corrosion Allowance	1 mm
Medium Density	420 kg/ cbm

Main parts of LPG Tank
Item		Specification/ mm	Quantity
Discharge Pipe		DN50-2"	1
Inflow Pipe		DN50-2"	1
Outlet		DN50-2"	1
Gas phase balance pipes		DN50-2"	1
Manhole		DN450	1
Drain Hole		DN50-2"	1
Other accessories：Cut-off Valve, Needle Valve, Safety Valve, Liquid level meter, Pressure gauge, Temperature Gauge.
	LPG Skid Part list
	Item	Model Number		Quantity
	LPG Tanker	LPG Storage Tank		1 piece
	LPG Filling Pump	2" inlet& outlet, 5.5KW, 380V/50Hz, Ex-proof,		1 Piece
	Adapter	Adapt 220V electricity to 380V with speed control		1 Piece
	Cylinder Filling Scale	Can fill 3kg to 150kg LPG cylinder		1 Pieces
	Leakage Detector	Leakage warning detector		1 Unit
	Pipes	/		1 sets
	Cut-off Valve	J41N-40 DN15		8 Pieces
	Safety Valve	A42F-25 DN50		1 Piece
	Pipe Safety Valve	A21F-25 DN15		1 Piece
	Ball floating level gauge	UQZ-2.5P		1 Piece
	Discharging pipe	L=4M DN50/DN25		1 Piece
	Shock-absorbing Tube	L=500mm DN50		2 Pieces
	Flange	2.5MPaDN15		14 Pieces
